Short Description:

Hot dipped galvanized &PVC coated welded iron wire mesh fence panels   Welded Wire Mesh is known as welded wire or welded mesh by some customers. The structure of this kind of wire mesh is strong, lasting and rust-resistant. Two ways of galvanization: hot dipped( hot galvanized) & cold(electric) galvanized. welded mesh, welded mesh panel, galvanized welded mesh, PVC coated welded mesh, stainless steel welded mesh, SS welded mesh sheet   Welded mesh is manufactured from brigh...



Details
Tags

Hot dipped galvanized &PVC coated welded iron wire mesh fence panels



Welded Wire Mesh is known as welded wire or welded mesh by some customers. The structure of this kind of wire mesh is strong, lasting and rust-resistant. Two ways of galvanization: hot dipped( hot galvanized) & cold(electric) galvanized.

welded mesh, welded mesh panel, galvanized welded mesh, PVC coated welded mesh, stainless steel welded mesh, SS welded mesh sheet



Welded mesh is manufactured from bright drawn mild steel wire and electronically welded at every intersection. If you choose welded mesh from Jinshi, some specifications are available in stainless steel types 304 and 316 giving better corrosion resistance. Galvanized weld mesh give a flatter finish that are easier to use if not fixing from both sides. It would be generally used for external projects or areas of moisture.





Galvanized fencing mesh
Opening Wire diameter (BWG)
In inch Metric unit (mm)
2”×3” 50mm×70mm 2.0mm,2.5mm,1.65mm
3”×3” 75×75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2”×4” 50mm×100mm 2.11mm,2.5mm
4”×4” 100mm×100mm 2.0mm,2.5mm



PVC Coated Welded Mesh
Opening Wire diameter (BWG)
In inch Metric unit(mm)
1/2”×1/2” 12.7mm×12.7mm 16,17,18,19,20,21
3/4”×3/4” 19mm×19mm 16,17,18,19,20,21
1”×1” 25.4mm×25.4mm 15,16,17,18,19,20

Welded Wire Mesh Process:

PVC coated after welded mesh

Electric galvanized before welded mesh
Electric galvanized after welded mesh
Hot-dipped galvanized before welded mesh
Hot-dipped galvanized after welded mesh
Iron/galvanized wire+PVC coated
Stainless steel 304, 316 wire



Welded Wire Mesh Specifications

Wire Materials:Mild steel wire, stainless steel wire, galvanized steel wire

width:0.5-1.8m

Length: 30m
(Special size is available according to the order)



Specification List of Welded Wire Mesh:

Opening

Wire Diameter

In inch

In metric unit(mm)

1/4″ x 1/4″

6.4mm x 6.4mm

22,23,24

3/8″ x 3/8″

10.6mm x 10.6mm

19,20,21,22

1/2″ x 1/2″

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8″ x 5/8″

16mm x 16mm

18,19,20,21,

3/4″ x 3/4″

19.1mm x 19.1mm

16,17,18,19,20,21

1″ x 1/2″

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2″ x 1-1/2″

38mm x 38mm

14,15,16,17,18,19

1″ x 2″

25.4mm x 50.8mm

14,15,16

2″ x 2″

50.8mm x 50.8mm

12,13,14,15,16
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request

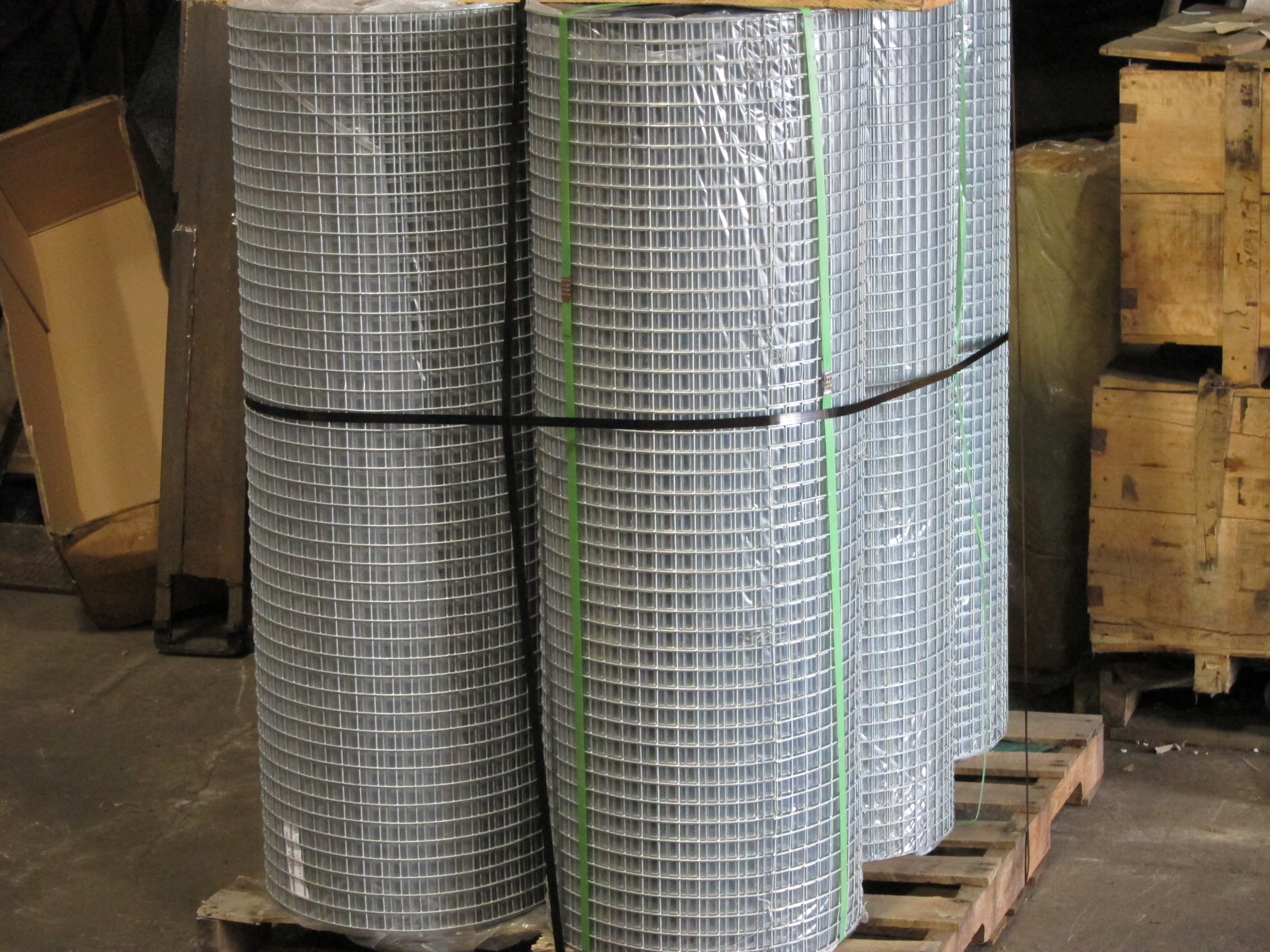

3.Packing: in waterproof paper in rolls. Custom packing available at request.

welded wire mesh xinhai-0011
