steel grating
SEND EMAIL TO US

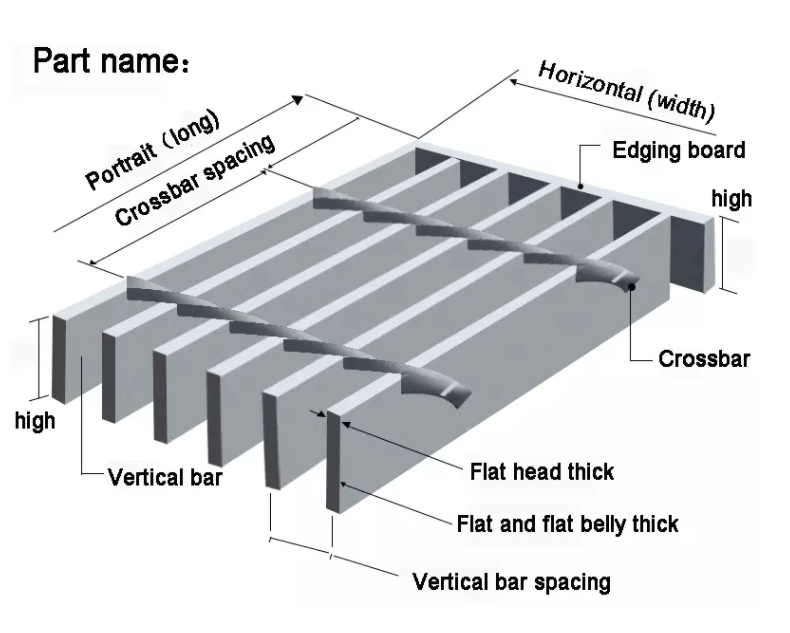

Steel grating is basically consist of Bearing bar and Cross bar by automatic press welding machine as following chart:
|
Product name
|
Steel Grating
|
|||
|
Grating Style
|
Plain type, Serrated type, I Type and Serrated I type steel gratings
|
|||
|
Surface Treatment
|
Black/Untreated (U), Hot dip galvanizing (G), Painting (P)
|
|||
|
Usage
|
industry of Power plant, Oil Refineries,Petrochemistry, Chemical Plant, Water and Waste treatment plant, Ship-building, offshore
projects and civil construction (like roads, park) ., etc. |
|||
|
Bearing bar (width * thickness)
|
25*3mm,25*4mm,25*5mm,30*3mm,30*4mm,30*5mm,32*3mm,32*5mm,40*3mm,40*4mm,40*5mm,50*3mm,50*4mm,50*5mm Etc.
|
|||
|
Bearing bar pitch (mm)
|
12.5, 15, 20, 25, 30, 34.3, 35.3, 40,41.25, 50, 60…(30, 40,50 mm are recommended ),also can do the size as customer’s request
|
|||
|
Cross bar pitch (mm)
|
38.1, 50, 76.2, 100, 101.6 . Etc.(30, 50, 100 ,150 mm are recommended ),also can do the size as customer’s request
|
|||
|
Material:
|
Mild steelQ235, Stainless steel
|
|||
Steel Grating
They are widely used in Flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform,pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy
equipment area, etc. We are professional factory to design and manufacture standard steel grating and customize according to client’s requirements.
equipment area, etc. We are professional factory to design and manufacture standard steel grating and customize according to client’s requirements.
