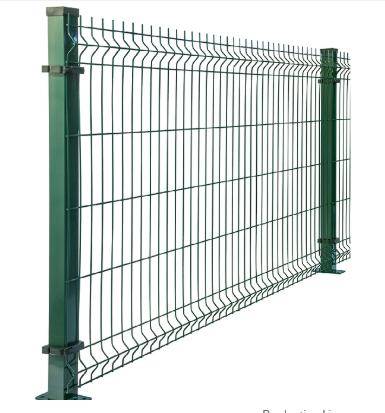

Our Fence Post Sleeve & Welded Wire Mesh Fence System is designed for high-security, durability, and easy installation
Key Features
- Durable & Rigid Construction: High-tensile steel wire welded with reinforcement bends (3 to 4 folds) to maximize rigidity and impact resistance
- Superior Corrosion Resistance: Premium anti-corrosion coating options suitable for harsh outdoor environments and long service life.
- Easy & Secure Assembly: Equipped with precise post sleeves and secure clamp systems for quick, stable site installation
- Versatile Aesthetics: Available in standard RAL colors (Dark Green, Grass Green, Black, White, Red, Blue, Yellow, etc.) to blend seamlessly with surrounding landscapes
- Customization Accepted: Wire gauge, aperture size, post thickness, and panel heights can be tailored to project specifications
Specifications
| Component | Parameter | Specifications |
Welded Mesh Panel | Mesh Opening / Hole Size | 50 × 100 mm / 50 × 200 mm / 50 × 75 mm |
Wire Diameter | 3.5 mm – 5.0 mm | |
Panel Dimension | 1.8 m × 3.0 m (with 3 or 4 bends) | |
Fence Post | Post Dimensions | 50 × 60 mm / 50 × 50 mm |
Wall Thickness | 1.0 mm – 3.0 mm | |
Post Height | 1.8 m – 2.5 m | |
Post Spacing / Distance | 2.0 m – 3.0 m | |
Color Options | Available Finishes | Dark Green, Grass Green, Red, White, Black, Blue, Yellow, etc. |
Custom Service | Customization | Fully accepted (dimensions, colors, coating thickness) |
Typical Applications
- Industrial parks, warehouses, and logistics centers
- Highways, railways, and airport boundary protection
- Residential estates, gardens, and municipal parks
- Schools, sports facilities, and commercial perimeters
